AURI-RX1 Auri Receiver
Part code: AURI-RX1

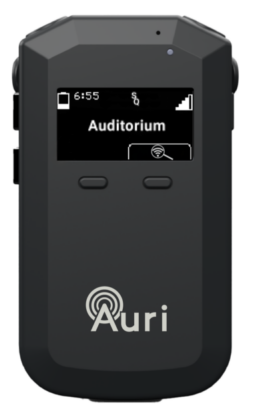

The Auri RX1 receiver is a compact, user-friendly solution for those without Auracast™-enabled devices, meeting global accessibility standards. It delivers high-quality, low-latency audio and features intuitive side-mounted power and volume controls. The RX1 includes two 3.5mm output jacks for connecting earbuds, headphones or neck loops for telecoil-equipped hearing aids, allowing two users to share one receiver. A front-panel OLED screen displays channel name, battery status, and charging indicators, with easy buttons for channel selection. Powered by the LA-367 Lithium Polymer battery, it offers quick charging and extended run time via USB or docking contacts.

hidden tab
Features
  • Supports integrated neck loop lanyards for people with T-coil-equipped hearing aids
  • Scans for all Auri broadcasts or locks to one or more predetermined channels
  • Supports open and encrypted broadcasts
  • All-day battery life
Specifications (PDF)

Click here to open datasheet in a new tab

Auri RX1 Receiver

The Auri Audio Receiver is a state of the art assistive listening receiver, allowing venues to provide hearing assistance to guests while meeting compliance with disability and accessibility requirements. Real-time audio is broadcast from a Auri Transmitter over Bluetooth Low Energy (BLE) directly to AURI-RX1 receivers. Venues can simply lend receivers to guests who want to hear the audio loud and clear. Guests experience high quality low latency audio at your venue with the Auri Audio Receiver.

The Auri Receiver provide high-performance audio in a compact device that offers best-in-class pickup and reduced noise. The Auri Receiver also provides houses of worship, theaters, lecture halls, and other venues with an easy-to-use easy-to-manage solution when adding or expanding their assistive listening options.

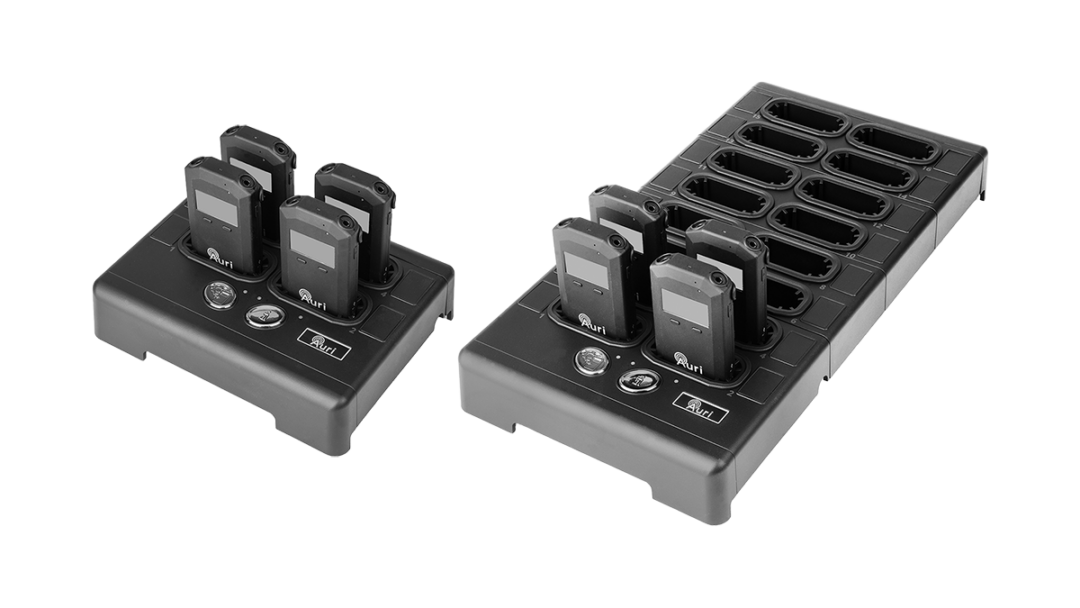

The built-in rechargeable battery technology makes the RX1 an economical and environmentally friendly choice, reducing the costs of operation and ownership while offering extended use. Each unit features a built in docking station port which, in addition to being used for quick and convenient battery charging, also allows for fast and simple firmware updates, setup, and programming using the free Auri Manager Software.

The integrated neck loop and lanyard with loop driver makes the RX1 easy to wear and convenient for listeners with T-coil equipped hearing aids. Additionally, the OLED display built in to each receiver provides at-a-glance information including channel status, battery level, and more.

From classrooms to conferences, businesses to banquet halls, and more, the AURI-RX1 makes an outstanding choice for a comfortable, clear, and reliable personal listening receiver.

  • Supports integrated neck loop lanyards for people with T-coil-equipped hearing aids
  • Scans for all Auri broadcasts or locks to one or more predetermined channels
  • Supports open and encrypted broadcasts
  • All-day battery life

Audio

Audio Output
Connection 2x 3.5mm TRRS connections for wired headphones or inductive neck loops, supports TRS or TRRS headphones
Nominal Output Level 0 dBu, 16mW maximum
Impedance 32Ω
Audio Processing
Frequency Response +/- 3 dB (system) 16 kHz sample rate: 50 Hz – 7.5 kHz
24 kHz sample rate: 50 Hz – 11.0 kHz
48 kHz sample rate: 50 Hz – 19.5 kHz
THD+N (system) < 0.5% Total Harmonic Distortion (at nominal level)
Signal to Noise Ratio (system) > 60 dB (at nominal level)
Latency (system) Auri RX1 – 29 ms to 45 ms dependent on sample rate and mono/stereo. Other transmitters will vary.

Radio

Bluetooth Version 5.3
Operating Frequency 2400 to 2482 MHz
Operating Mode Auracast™ Compliant, Broadcast Receive Only
Supported Codec LC3
Encryption AES128-CCM encryption, with 4-16 character password
Supported Formats Mono or Stereo

Controls

Buttons Power, Volume Up/Down, Two Front Multifunction Soft Buttons
User Control Power on/off, display on/off, channel selection, volume up/down
Setup/Programming Via Auri™ Manager Software/Docking Station

Indicators

Display 31 x 16 mm (1.22 x .63 in), 64 x 128 pixel OLED display
Display Contents Channel playing, available channels, battery level with time remaining, signal strength, volume status, charging status
Light Sensor Visible light, automatically adjusts display brightness
Status LED RGB multi-function LED, see handbook for all states

Power and Charging

Power Supply USB-C PD Compliant or Docking Station – 5V, 500mA
Dock Connection 4 contacts w/ magnetic latch for charging and programming via docking station
Battery Type Lithium Polymer, rechargeable, field replaceable
Battery Life > 20 hours

Physical

Dimensions (H x W x D) with Belt Clip 90 x 54 x 23 mm (3.54 x 2.13 x 0.91 in.)
Unit Weight 0.07 kg (0.15 lbs.)

Environmental

Temperature – Storage -40 °C (-40 °F) to 70 °C (+158 °F)
Temperature – Operation -10 °C (+14 °F) to 50 °C (+122 °F)
Humidity 0% to 95% relative humidity, non-condensing



*Specifications subject to change without notice
