W5-2 Wall mount MultiLoop hearing loop driver

W5-2 Wall mount MultiLoop hearing loop driver

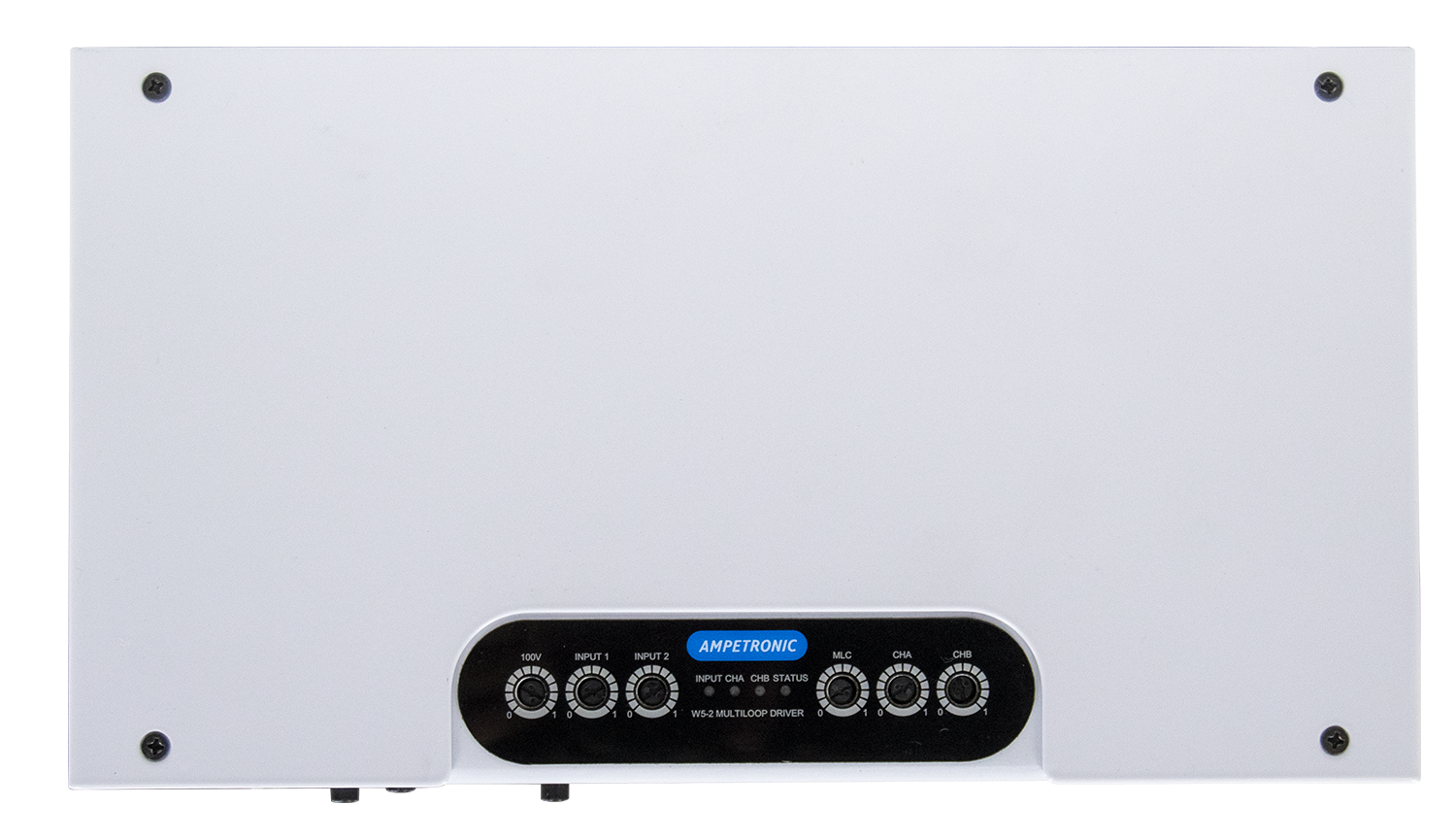

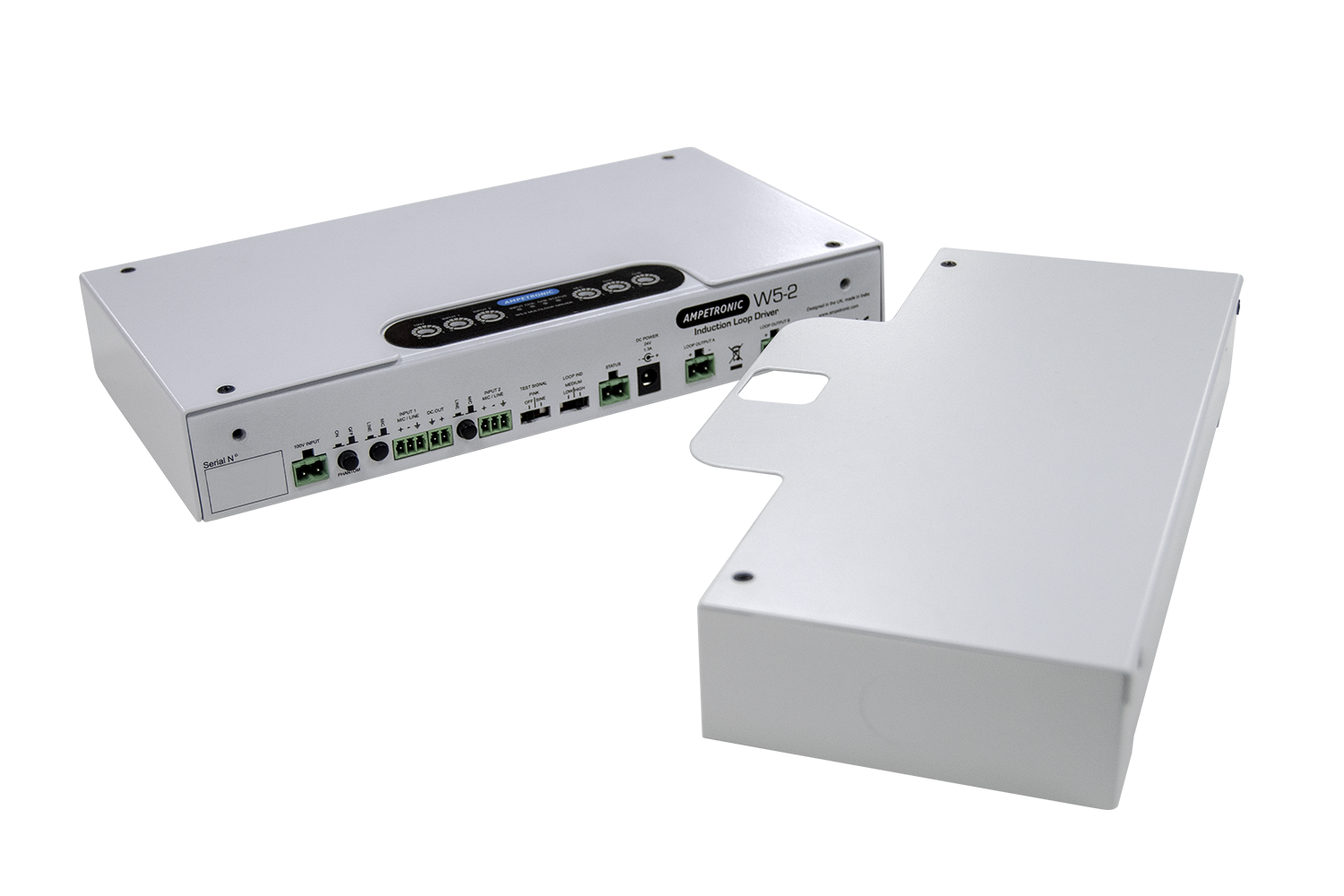

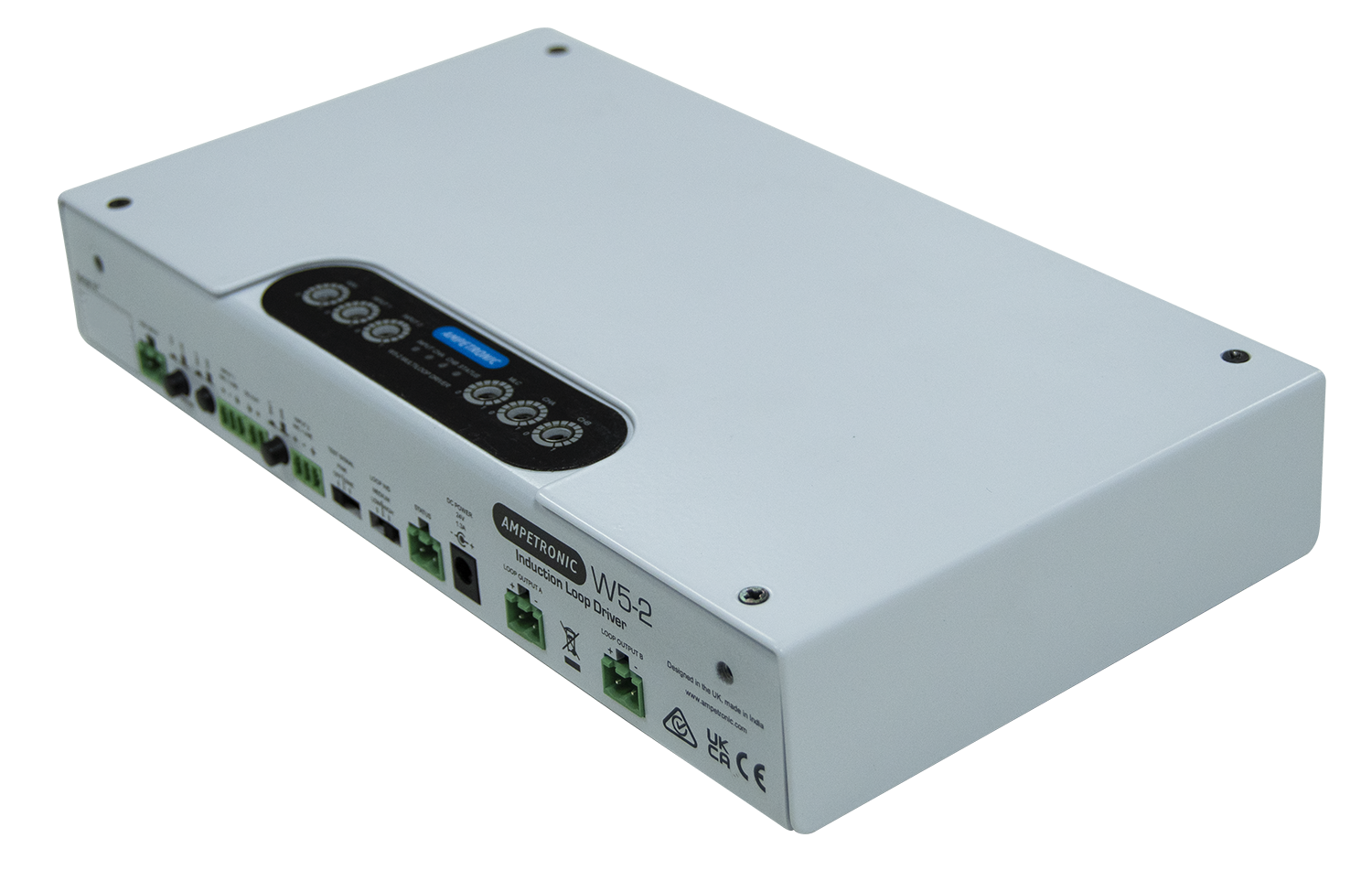

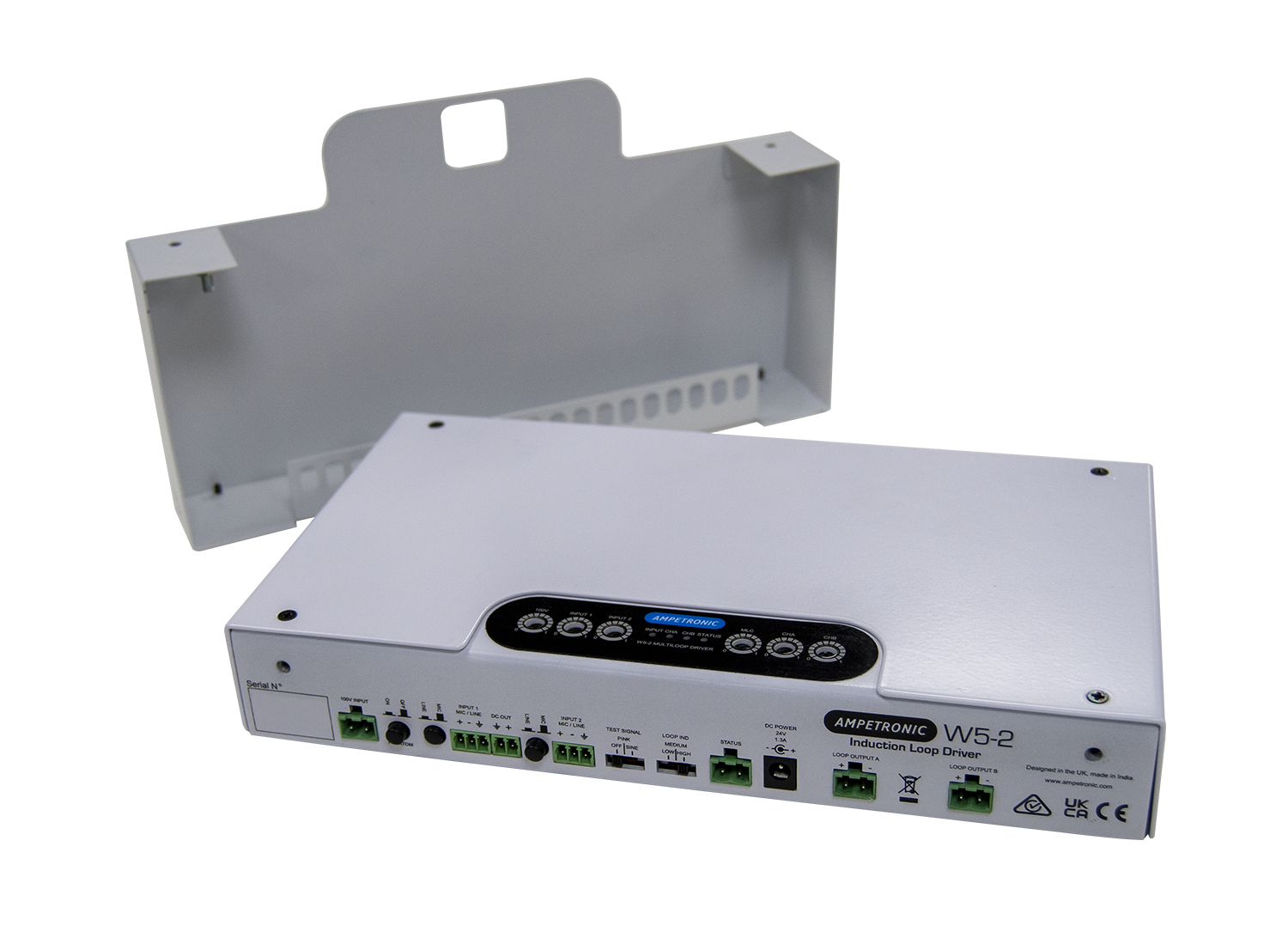

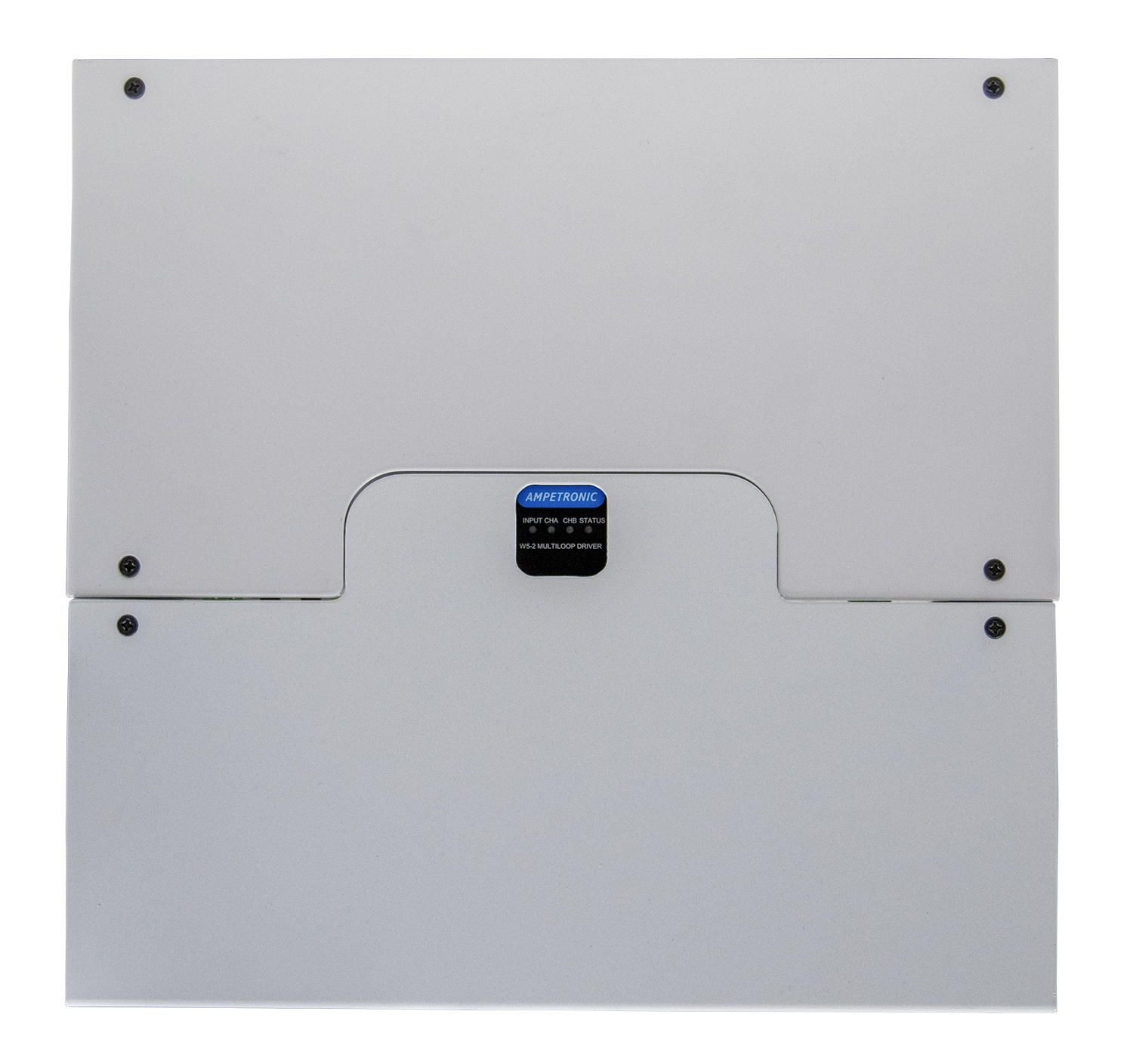

Part code: W5-2 Wall mount MultiLoop hearing loop driver

The W5-2 is designed particularly for small rooms where there is no AV rack and no network monitoring requirements, but can still make use of Ampetronic’s industry leading spill control design.

hidden tab

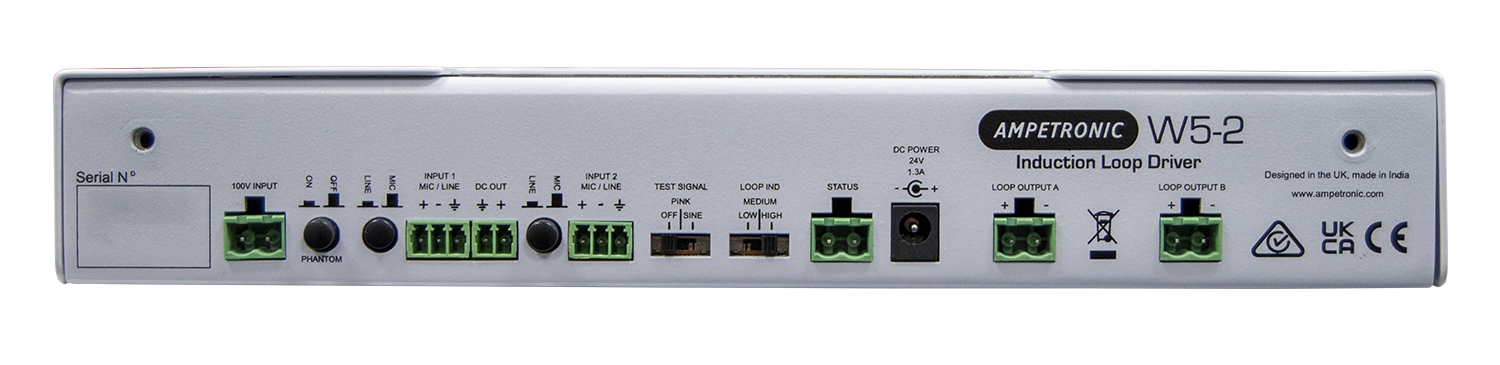

Features
  • Input 1 & 2 – 3 way 3.5mm euroblock screw terminal input
  • Balanced mic/line selectable
  • 100V line input – 2 way 5mm euroblock screw terminal
  • Phantom Power – 24V (switchable on both channels)
  • Loop Output Drive Current – W5-2 – 5A RMS per channel
  • Loop Output Connectors – 2 way 5mm euroblock screw terminal per channel
  • Built-in Test Tones (1KHz sine, Pink noise)
  • Phase shift – 90° (always on)
  • Metal Loss Correction – 0 to 3dB per octave frequency correction (1KHz remains constant)
  • Three stage inductance compensation – to correct frequency response with different loop lengths
  • DC Out – 24V DC
Standards

These products are designed to form part of a system that can meet all of the requirements of the international loop performance standard IEC60118-4, and the relevant parts of IEC TR 63079.

To fully meet requirements of these standards, correct design, installation, commissioning and maintenance are required. All specification data has been compiled in accordance with IEC62489-1, the international performance reporting standard for audio frequency induction loop equipment. Specification data should only be compared with data compliant to this standard.

This product is CE and RCM marked to all relevant safety and EMC standards, and is MET Labs approved for sale in North America.

Specifications (PDF)

Click here to open datasheet in a new tab

W5-2 Wall mount MultiLoop hearing loop driver

The W5-2 is designed particularly for small rooms where there is no AV rack and no network monitoring requirements, but can still make use of Ampetronic’s industry leading spill control design.

Design templates for low spill in especially small rooms are available to download from the Loopworks portal here. These are optimised specifically for the W5-2, including two turn options with twin core flat copper tape for higher loss environments.

Note that a Loopworks account is needed to access design template downloads, it is free to register and grants access to the full suite of Loopworks tools and resources.

Use the calculator below to find the most suitable design template for your room and determine the required cable length.

W5-2 Design and Cable Calculator


Width (X)
metres

Length (Y)
metres

A suitable design will be automatically chosen based on the room length. Follow the links below to download installation drawings for the chosen design.





Left
metres

Right
metres

Top


Bottom


Gap to wall distance must balance between coverage and overspill control. In larger rooms a distance of 0.5m is generally recommended.

Where rooms are narrow or furniture is close to the walls a smaller gap may be required to cover all listening positions, however this will lead to increased overspill in that direction.

Top and bottom gaps are automatically worked out to centre the chosen design within the room length.










Up to 5m of 2.5mm² twisted feed cable can be used between the amplifier and loop tapes.



  • Input 1 & 2 – 3 way 3.5mm euroblock screw terminal input
  • Balanced mic/line selectable
  • 100V line input – 2 way 5mm euroblock screw terminal
  • Phantom Power – 24V (switchable on both channels)
  • Loop Output Drive Current – W5-2 – 5A RMS per channel
  • Loop Output Connectors – 2 way 5mm euroblock screw terminal per channel
  • Built-in Test Tones (1KHz sine, Pink noise)
  • Phase shift – 90° (always on)
  • Metal Loss Correction – 0 to 3dB per octave frequency correction (1KHz remains constant)
  • Three stage inductance compensation – to correct frequency response with different loop lengths
  • DC Out – 24V DC

INPUTS & SIGNAL PROCESSING

MIC

Line

UNITS

Input figures quoted at maximum front panel gain control setting.

INPUT 1 & 2: (mic/Line) 3 way, 3.5mm phoenix, balanced, suitable for up to 600Ohm microphones or line level.

Input impedance

8,700

8,700

Sensitivity

-69

-45

dBu

Overload

-33

-9

dBu



100V: Isolated 100V line input

Input impedance

120,000

Sensitivity

+11

dBu

Overload

+47

dBu

AGC: Compression of signal indicated by green INPUT LED when active and RED when overloaded.

Input range

>36

dB

Output range

±1

dB

Min. input level for AGC

See sensitivity

 Attack time

3.5

ms

Decay time

1.4

s

METAL LOSS CORRECTION: Specially designed adjustable filter to compensate for the effects of metal loss. Gain @ 1kHz remains constant.

Min. slope

0

dB/oct.

Max. slope

+3

 dB/oct.

LOOP IND: High shelf filter options to compensate for the effect of loop inductance on the class D output stage

Low

No effect

Med

3dB max starting from ~1kHz

High

4.8dB max starting from ~1kHz

Test Signals: Internally generated signals for commissioning which when activated interrupt the input audio signal.

Off

Audio signal passed

Field

Single 1k tone

Hz

Freq

Combined 100, 1k & 5k sine tones

Hz



DC Power

Power figures for reference only. With unit set for maximum output with the input in AGC. Only use the provided DC power supply.

Voltage

 24

 V

Current idle

  0.28

    A

Current pink noise

1.3

A

Current sine

3.2

A



OUTPUTS

UNITS

LOOP OUTPUT: 2x 2way, 5mm, phoenix.

Voltage

7.8

VRMS

Current

5

ARMS

Continuous pink noise

2.5

ARMS

THD +N (1kHz, sine, max output)

0.5

%

Maximum loop resistance

0.6 (at maximum current)

Frequency response

±3dB, 100 to 5000Hz

DC OUT: 2 way, 3.5mm, Phoenix. Fuse protected output for ancillary devices.

Voltage

24

V

Current

0.1

A

Status:2 way, 5mm, Phoenix. Volt free relay contacts indicating fault condition when open.

Contact rating (resistive load)

12A, 125Vac

10A, 250Vac

10A, 30Vdc



PROTECTION FEATURES

 UNITS

Thermal Protection: If the PA amplifier reaches a pre-determined level the

output current will be gradually attenuated followed by shutdown.

Output attenuation

Max -4dB @ 90

°C

Unit shutdown (Requires power cycle to recover)

PA chip junction temp>155 °C

°C

DC input over-current

Output attenuation

Max 4dB >5A dc input

Output over-current

Unit shutdown (Requires power cycle to recover)

>10A loop current



PHYSICAL CHARACTERISTICS

UNITS

Dimensions: Width

270

mm

Height

152

mm

Depth

42

mm

Weight

1.1

kg

Operating temperature

-10 to 40

°C

Ingress protection rating

30

IP

These products are designed to form part of a system that can meet all of the requirements of the international loop performance standard IEC60118-4, and the relevant parts of IEC TR 63079.

To fully meet requirements of these standards, correct design, installation, commissioning and maintenance are required. All specification data has been compiled in accordance with IEC62489-1, the international performance reporting standard for audio frequency induction loop equipment. Specification data should only be compared with data compliant to this standard.

This product is CE and RCM marked to all relevant safety and EMC standards, and is MET Labs approved for sale in North America.

hidden tab
Features
  • Input 1 & 2 – 3 way 3.5mm euroblock screw terminal input
  • Balanced mic/line selectable
  • 100V line input – 2 way 5mm euroblock screw terminal
  • Phantom Power – 24V (switchable on both channels)
  • Loop Output Drive Current – W5-2 – 5A RMS per channel
  • Loop Output Connectors – 2 way 5mm euroblock screw terminal per channel
  • Built-in Test Tones (1KHz sine, Pink noise)
  • Phase shift – 90° (always on)
  • Metal Loss Correction – 0 to 3dB per octave frequency correction (1KHz remains constant)
  • Three stage inductance compensation – to correct frequency response with different loop lengths
  • DC Out – 24V DC
Standards

These products are designed to form part of a system that can meet all of the requirements of the international loop performance standard IEC60118-4, and the relevant parts of IEC TR 63079.

To fully meet requirements of these standards, correct design, installation, commissioning and maintenance are required. All specification data has been compiled in accordance with IEC62489-1, the international performance reporting standard for audio frequency induction loop equipment. Specification data should only be compared with data compliant to this standard.

This product is CE and RCM marked to all relevant safety and EMC standards, and is MET Labs approved for sale in North America.

Specifications (PDF)

Click here to open datasheet in a new tab
